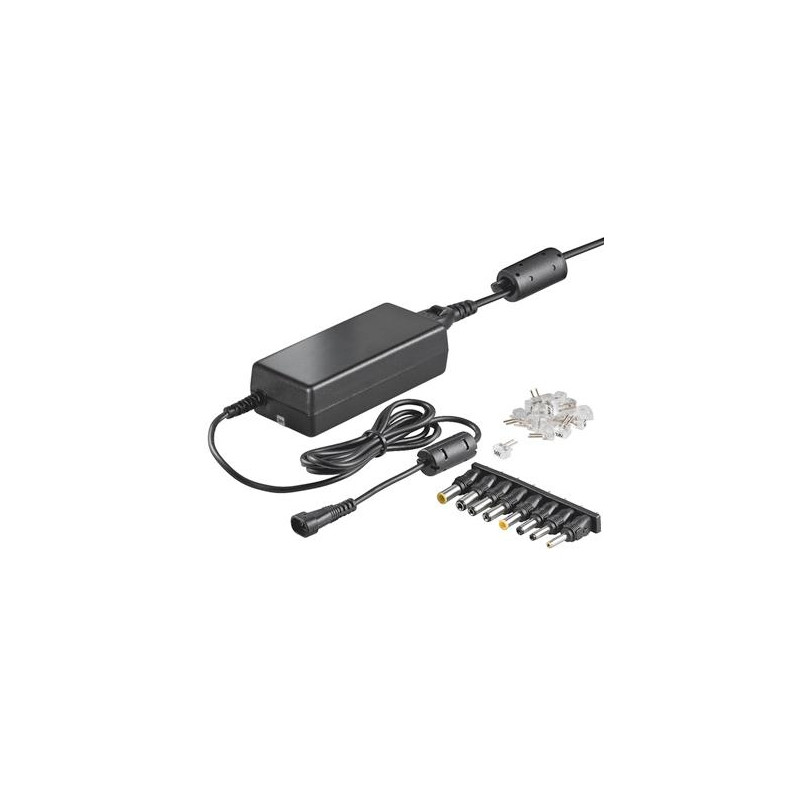

ALIMENTADOR UNIVERSAL REG. 5 - 12V 8 TOMAS 30W

stabilized switching power supply AC/DC
with max. 4000 mA / 30 W

This super flat EuP (ErP) switching mode adapter is a
follow up model of NTS 35 W. The super slim design
is the outcome of latest switching mode technology.
8 multiple tips for use with most electric equipment
- Dimensions: 93 x 44 x 28 mm

Output voltage is selectable by 8 slots with fixed
voltage:
- 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 V DC

5 V DC : 4000 mA 9 V DC : 3100 mA
6 V DC : 3500 mA 10 V DC : 2850 mA
7 V DC : 3300 mA 11 V DC : 2600 mA
8 V DC : 3200 mA 12 V DC : 2500 mA

- with 8 different detachable plugs
- DC-plug 3.50 mm x 1.00 mm
- DC-plug 3.50 mm x 1.35 mm
- DC-plug 4.00 mm x 1.75 mm
- DC-plug 4.80 mm x 1.75 mm
- DC-plug 5.00 mm x 2.10 mm
- DC-plug 5.50 mm x 2.10 mm
- DC-plug 5.50 mm x 2.50 mm
- DC-plug 6.30 mm x 3.00 mm

input voltage 100 - 240 V AC
output voltage 5 - 12 V DC
output current 2500 - 4000 mA
AC input plug Euro
version stabilized
detachable plugs DC 8
switching adapter yes
short circuit proof yes
over load protection yes
over current protection yes
over heat protection yes
USB outlet no
